Integrated Waterjet Cutting Machine 0.1mm-100mm
Golden Arrow integrated waterjet cutting machine consists of Ultra high pressure pump, cutting platform, X axis & Y axis assemblies, abrasive supply system, CNC controller and other optional parts, such as loading and unloading system, chiller system etc. It specialized two-stage pressure boosting system prevents glass from cracking, which helps to solve the problem of cutting fragile materials. GA glass waterjet cutting machine is used by customers in a wide range of industries for all kinds of materials. GA waterjet is reliable, effective, safe and affordable.GA waterjet cutting machines not only have been recognized as prestige in China, but are also highly thought of and have been exported to countries all over the world.

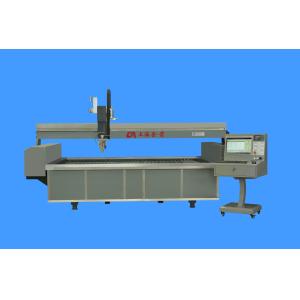

Structural style of Precision Motion System
Style: Compact structure, convenient installation, which is suitable for cutting material with relatively more fixed dimensions. Easily load and unload material from the cutting table.
| Type | JJ-IIA |
| Machine Structure | Bridge Style |
| Cutting size (X x Y axis) | 2500mmx1500mm | 3000mmx2000mm | 4000mmx2000mm |
| Mechanical Drive | Ball Screw and Linear Guide Rail |
| Controlling System | PC Controller/AC Servo Motor |
| Z-axis Travel | 150 |
| Cutting Accuracy | ±0.10 |
| Repeated Positioning Accuracy | ±0.05 |
- X, Y1, Y2 & Z axis machine frame
- Welding construction (TUV welding certificate) with treatment of tempering in order to keep the machine more stable
- Adopt precise ball screw, linear guide way, ensuring machine stability and accuracy
- Integral metal plates covering and protecting the machine frame, ensuring accuracy and an extension of service life
